Product Description:

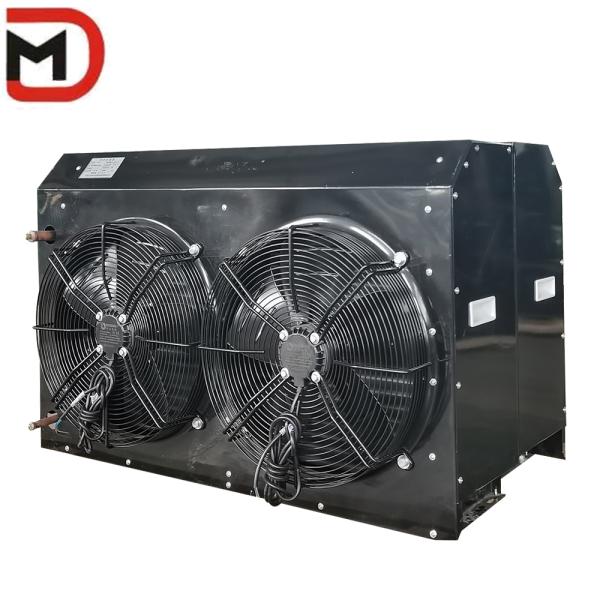

Air-Cooled Condenser
The Air-Cooled Condenser serves as a complimentary cooling facility that is equipped with cooling equipment to remove heat generated in the process of cooling. This type of condenser is available in three different forms: H, V, and U. Additionally, it's important to note that while both V and U types are designed to blow from the roof, the H category is designated for side blowing.
One of the best perks of using this facility is that it has a reasonable structure and excellent interchangeability, enabling it to be paired with a variety of compressors.
| Model | Area | Row bend several | Fan | Intake pipe Ømm | The liquid pipe Ømm | Weight kg |
| Number | Power(W) | Air volume m³/h | Wind leaf diameter Ø mm | Voltage(V) |
| FNH-0.6/2 | 2 | 2x4.5 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 4 |
| FNH-0.9/3 | 3 | 3x45 | 1 | 16 | 500 | 200 | 220 | 10 | 10 | 43 |
| FNH-1.2/4 | 4 | 3x5.5 | 1 | 40 | 800 | 250 | 220 | 10 | 10 | 6 |
| FNH-1.8/6 | 6 | 3*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 8 |
| FNH-2.5/8.5 | 8.5 | 4*7 | 1 | 90 | 1250 | 300 | 220 | 10 | 10 | 10.2 |
| FNH-3.6/12 | 12 | 4*8 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 13.8 |
| FNH-4.5/15 | 15 | 4*9 | 1 | 164 | 1800 | 350 | 220/380 | 16 | 12 | 16.5 |
| FNH-5.4/18 | 18 | 4*10 | 1 | 216 | 3000 | 400 | 220/380 | 16 | 12 | 22 |
| FNH-6.6/22A | 22 | 5*10 | 1 | 216 | 3000 | 400 | 220/380 | 19 | 16 | 24 |
| FNH 7.6/22B | 22 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 26 |
| FNH-8.4/28 | 28 | 4*8 | 2 | 2*164 | 2*1800 | 350 | 380 | 19 | 16 | 29 |
| FNH-9.9/33 | 33 | 4*9 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 36 |
| FNH-13.0/41 | 41 | 4*12 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 40 |
| FNH-15.0/49 | 49 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 19 | 16 | 50 |
| FNH-18.0/60 | 60 | 4*14 | 2 | 2*216 | 2*3000 | 400 | 380 | 22 | 16 | 58 |
| FNH-21.0/70 | 70 | 4*18 | 4 | 4*164 | 4*1800 | 350 | 380 | 22 | 19 | 72 |
| FNH-24.0/80 | 80 | 4*20 | 4 | 4*216 | 4*1800 | 400 | 380 | 25 | 22 | 81 |
| FNH-27.0/90 | 90 | 4*20 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 90 |
| FNH-30.0/100 | 100 | 4x24 | 4 | 4x216 | 4*3000 | 400 | 380 | 25 | 19 | 98 |
| FNH-36.0/120 | 120 | 4*24 | 4 | 4x216 | 4*3000 | 400 | 380 | 28 | 19 | 105 |
| FNH-42.0/140 | 140 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 28 | 22 | 128 |
| FNH-45.0/150 | 150 | 5*24 | 4 | 4x290 | 4*4500 | 450 | 380 | 32 | 25 | 135 |
| FNH1-54.0/180 | 180 | 6x24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 170 |
| FNH-60.0/200 | 200 | 6*24 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 190 |
| FNH-66.0/220 | 220 | 6x25 | 4 | 4x449 | 4x6500 | 500 | 380 | 32 | 25 | 200 |
| FNH-75.0/250 | 250 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 220 |
| FNH-90.0/300 | 300 | 6x28 | 4 | 4x670 | 4*8500 | 550 | 380 | 32 | 25 | 260 |
Applications:
Condensers play a crucial role in the proper functioning of refrigeration units utilized in different types of cold storage facilities. Their primary purpose is to help in the cooling process by converting refrigerant vapors back into a liquid form. This conversion process releases the heat energy absorbed in the previous stages of cooling, allowing the refrigerant to flow back into the compressor and begin the cooling cycle once more.
You can find condensers in a range of refrigeration systems, from small units for household use to large commercial and industrial installations. Understanding the specific needs of the refrigeration system is essential when choosing the right type of condenser to use. Factors such as the type of refrigerant used, the size of the unit, and the desired cooling capacity can influence the type of condenser selected for the best performance.
Condensers play a crucial role in the proper functioning of refrigeration units utilized in different types of cold storage facilities. Their primary purpose is to help in the cooling process by converting refrigerant vapors back into a liquid form. This conversion process releases the heat energy absorbed in the previous stages of cooling, allowing the refrigerant to flow back into the compressor and begin the cooling cycle once more.
Customization:
- Brand Name: Damai
- Model Number: DM-FNH
- Place Of Origin: Zhejiang China
- Certification: CE
- Packaging Details: Wooden Case
- Payment Terms: T/T
- Keyword: Blast Freezer
- Tube Pitch: 1.25-1.5 Times Tube Diameter
- Receiver Drier Included: Yes
- Cooling Capacity: Depends On Size And Material
This product can be customized as a Freezer Room Condensing Unit, Steam Condenser, or Air Conditioner Condenser Evaporator.
Support and Services:
The Air Cooler Condenser is a reliable and efficient product designed to cool air in a variety of settings. Our technical support team is available to answer any questions you may have about the installation, operation, and maintenance of your Air Cooler Condenser. Additionally, we offer a range of services to ensure your product is running at peak performance, including regular maintenance checks and repair services. Contact us today for more information on how we can support your Air Cooler Condenser needs.
